Respiratory
  • Features
  • O2+CO2 Sampling Cannula
  • Features
  • Capnography Sampling Mask
  • Features
  • Model
  • Accessory


    The new improved connector maintains theoriginal function of old type, and offers 22mm connector to connect with ventilator for atomization.

    It widens the range of application where the patient mostly depend on ventilator such as ICU

    The wing attached to the distal tip of connecting tube can be helpful to withdraw the tube

    The bigger screw connector offers secure connection.


  • Cat. No.


    Specification




    42100006


    Nebulizer 6ml




    42100020


    Nebulizer 20ml




    42200001


    Mouth piece and T adaptor




    42200002


    Mouth piece and new type of T adaptor








  • Features
  • Model
  • Nebulizer With Mouth Piece


    Made of transparent soft PVC for good visualization

    Atomization rate is about 0.3ml/min

    Drive gas flow is about 4 to 8 L/min

    Atomization particle 5 m

    More choices of T piece and mouth piece

  • Cat. No.                             Type


    42300106    6mljar with mouth piece, 2.1m oxygen tube and short breathing tube


    42300006    6mljar with mouth piece, 2.1m oxygen tube

    42300020    20mljar with mouth piece, 2.1m oxygen tube and short breathing tube

    42400020    20mljar with mouth piece, 2.1m oxygen tube


  • Features
  • Model
  • Nebulizer With Aerosal Mask


    Made of transparent soft PVC for good visualization

    Atomization rate is about 0.3ml/min

    Drive gas flow is about 4 to 8 L/min

    Atomization particle 5 m


  • Cat. No.


    Type





    41404100


    6ml adult standard




    41404200


    6ml adult elongated




    41403100


    6ml pediatric standard





    41403200


    6ml pediatric elongated




    41404110


    20 ml adult standard




    41404210


    20 ml adult elongated




    41403110


    20 ml pediatric standard




    41403210


    20 ml pediatric elongated

  • Features
  • Model

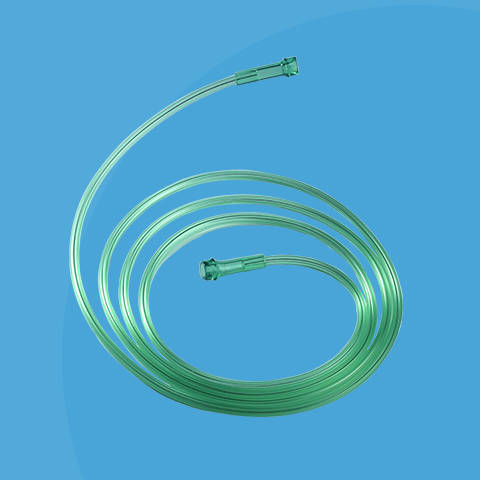

  • Oxygen Tubing
  • Cat. No.


    Size




    55100700


    Oxygen tubing 7ft




    55101000


    Oxygen tubing 10ft




    55101400


    Oxygen tubing 14ft




    55102500


    Oxygen tubing 25ft




    55105000


    Oxygen tubing 50ft

  • Features
  • Model
  • Aerosal Mask


    Made of transparent soft PVC for good visualization

    Connected with nebulizer

    Supplied with head strap and adjustable nose clip


  • Cat. No.


    Type




    41414100


    Adult standard without tubing




    41414200


    Adult elongated without tubing




    41413100


    Pediatric standard without tubing




    41413200


    Pediatric elongated without tubing

  • Features
  • Model
  • Tracheostomy Mask


    Made of transparent soft PVC for good visualization

    360 degree swivel connector provides maximum patient comfort

     Offered with universal connector for suction and oxygen delivery


  • Cat. No.


    Type




    41504000


    Adult




    41503000


    children

  • Features
  • Model
  • Adjustable Venturi Mask


    Made of transparent soft PVC for good visualization

    Provide various choices to suit different requirement:24%(Blue),28%(Yellow),31%(White),35%(Green),40%(Pink),50%(Orange)

    Single venturi valve is available with fixed concentration

    The standard length of tube is 2.1m,and different length is available


  • Cat. No.


    Type




    41134100


    Adult standard




    41134200


    Adult elongated




    41133100


    Pediatric standard




    41133200


    Pediatric elongated

  • Features
  • Model
  • Multi-Venturi Mask


    Made of transparent soft PVC for good visualization

     Locking ring secures flow setting

    Concentration for 24%,26%,28%,30%,35%,40%,50%

    The standard length of tube is 2.1m,and different length is available


  • Cat. No.


    Type




    41304100


    Adult standard with tube




    41304200


    Adult elongated with tube




    41303100


    Pediatric standard with tube




    41303200


    Pediatric elongated with tube

  • Features
  • Model
  • Non-Rebreathing Mask


    Provides a high concentration of oxygen

    Offered with head strap and adjustable nose clip.

    The star lumen tubing can ensure oxygen flow even if the tube is kinked.

    The standard length of tube is 2.1m,and different length is available


  • Cat. No.


    Type




    41204100


    Adult standard with tube




    41204200


    Adult elongated with tube




    41203100


    Pediatric standard with tube




    41203200


    Pediatric elongated with tube

  • Features
  • Model
  • Oxygen Mask


    Made of transparent soft PVC for good visualization

    The turn up rim can ensure comfortable fit with good airtightness.

    Offered with head strap and adjustable noseclip.

    The standard length of tube is 2.1m,and different length is available


  • Cat. No.


    Type




    41124100


    Adult standard,with2.1m tubing




    41124200


    Adult elongated,with. 2.1m tubing




    41124201


    Adult elongated,with. 3m tubing




    41123100


    Pediatric standard, with.2.1m tubing




    41123200


    Pediatric elongated, with.2.1m tubing




    41114100


    Adult standard,without tubing




    41114200


    Adult elongated,without tubing




    41113100


    Pediatric standard,without tubing




    41113200


    Pediatric elongated,without tubing




  • Features
  • Model
  • Nasal Oxygen Catheter


    Suitable for easy and efficient administration of oxygen

    Soft and smooth open distal and end facilitates with non-traumatic insertion.

    Funnel connector at proximal end.

    Three types are available,with moveable sponge,with non-moveable sponge at distal end,and without sponge


  • Cat. No.


    Size

    Specification


    (Fr)




    54200800


    8

    With sponge





    54201000


    10

    With sponge





    54201200


    12

    With sponge





    54201400


    14

    With sponge

  • Features
  • Model
  • Nasal Oxygen Cannula


    Available with different length to suit all patient’s requirement

    Available with various types of Adult, Pediatric, Infant and Neonate

    Available with a wide selection of prong types

    The soft curved prong can offer the best possible comfort to patient, and the flared type can slow down the flow of oxygen.


  • Cat. No.


    Type

    Length


    (m)




    54104001


    Adult straight prong

    2.1





    54103001


    Pediatric straight prong

    2.1





    54102001


    Infant straight prong

    2.1





    54704002


    Adult soft curved prong

    2.1





    54703002


    Child soft curved prong

    2.1





    54702002


    Infant soft curved prong

    2.1





    54701002


    Neonate soft curved prong

    2.1





    54804002


    Adult soft flared prong

    2.1
